WEARCOAT 66

  • Tough, glossy, hard-wearing and chemically resistant surface for the protection of urethane and polyester composites, concrete, masonry, and over approved substrates.
  • Possesses excellent color fastness and ultra-violet radiation resistance as well as high tensile strength

USAGE: PROTECTIVE COATING

Image result for ul logo



> FULL PRODUCT INFORMATION

Categories: , Tags: , , Product ID: 1033

Description

PDF FORMS:  DATA SHEET, SDS Part A, SDS Part B

COLORS
24 Standard Colors. Custom Colors are available.
ANDEK COLOR CHART >

VIDEO: True Grip Softsand application

Description

WEARCOAT 66 is a solvent based cyclo-aliphatic urethane based coating.  It produces a tough, glossy, hard-wearing and chemically resistant surface for the protection of urethane and polyester composites, concrete, masonry, and over approved substrates.  WEARCOAT 66 is available as a transparent, glossy coating or as a pigmented material that possesses excellent color fastness and ultra-violet radiation resistance as well as high tensile strength.  WEARCOAT 66 will encapsulate most aggregates, including sharp, angular types used for traction enhancement.

Outstanding Features

  • Will encapsulate rough, angular aggregates
  • Cured film is flexible, tough, and abrasion-resistant
  • May be used for traction enhancement in pedestrian and vehicular situations
  • Accommodates normal substrate movement and thermal stresses
  • Highly resistant to staining and deterioration from most chemicals
  • Maintains its attractive, clean appearance
  • Easily scrubbed and cleaned to maintain its attractive, clean appearance
  • Available in a wide variety of colors and textures

Various uses

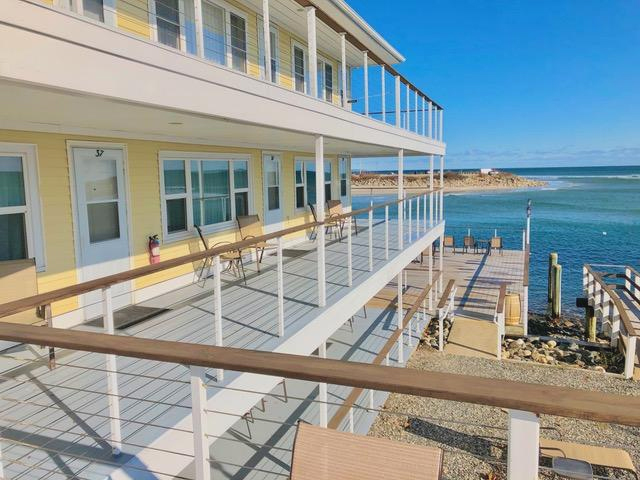

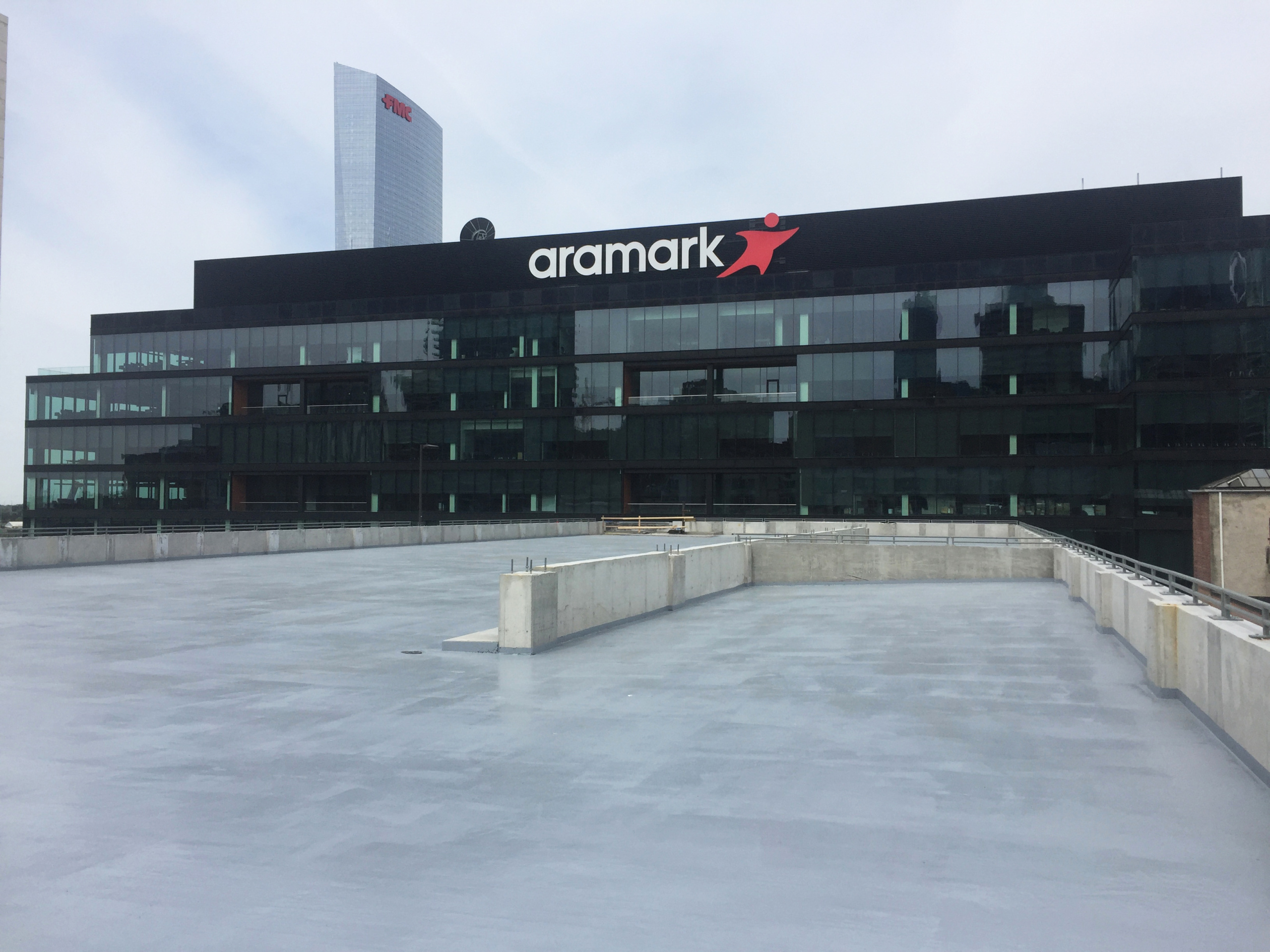

  • Protects the surface of waterproof membranes over parking structures plazas, balconies and walkways.
  • Provides a durable finish coating inside fountains, ponds, tanks and water features.
  • Produces a waterproof, traction-enhanced coating on stairways and access ramps.
  • Forms a protective colorfast finish over polyurea, polyester, PVC and composite decks.

Recommended for

Can be used over concrete, fibreglass composites, insulation, most metals, mineral composites, wood, wood composites, rubber, plastic composites, PUF and other surfaces.

Coverage

Approximate 2 coats @400 sq ft/gal per coat, depending upon substrate

Container sizes

1 gallon, 5 gallon

Technology

Two-part aliphatic urethane



Preparation and Application

Surface Preparation
All surfaces to be coated must be clean, dry, and completely free of loose particles, oil, grease, or any substance that would interfere with proper bond. If overcoating a painted surface, check compatibility first, as some paints may bleed color or be lifted by solvents.

Application
Add Part ‘B’ color concentrate to the clear Part ‘A’ and stir thoroughly for 3 minutes. WEARCOAT 66 is applied at a rate of 400 square feet per gallon per coat. WEARCOAT 66 may be applied by brush, roller, or airless spray technique in a thin, even coat. If traction enhancement is required, the use of vulcanized synthetic rubber granules are recommended. SoftSand Rubber from SoftPoint Industries is available in one-pint or 5-gallon containers from Andek Corporation. Available in several textures (see SoftSand Rubber data sheet), it is applied at a rate of 1 to 2 pints per 100 square feet. Broadcast or mix-in techniques may be used to achieve various levels of traction enhancement.  After the first coat has thoroughly dried with the embedded aggregate, a second coat of WEARCOAT 66 is applied to thoroughly encapsulate the aggregate.

Recommended Thickness
3 mils Dry Film Thickness (DFT) per coat

Working Time
Approximately 3 hours at 70°F (50% RH)

Drying Time
Approximately 1.5 hours at 70°F (50% RH)

Cure Time
Approximately 24 hours at 70°F (50% RH)

Clean up
Equipment may be cleaned with toluene or xylene while the WEARCOAT 66 is still wet.

Limitations
Store in a cool, dry place away from direct sunlight. Avoid opened containers, as moisture will cure the material. Do not apply in temperatures below 35°F. Application must be protected from precipitation for at least 4 hours. Shelf life is 12 months when stored in proprietary sealed containers between 45°F and 85°F.



Read the container label warning and Safety Data Sheet (SDS) for important health and safety information prior to the use of this product.

KEEP AWAY FROM CHILDREN AND PETS

For additional information, contact the Andek Technical Department



Technical Data
VOC 250 gms/liter
Resistance to Corrosion 10 ASTM D-1654
Shore ‘A’ Hardness 95 ASTM D-2240
Tensile Strength 4,500 lb/square inch ASTM D-412
Elongation 10% ASTM D-412
Solids Content 72% (B.W.); 66% (B.V.) ASTM D-1044
Flashpoint
110° F FTMS 141A (M4293)
Flexibility @ Low Temperatures
180 deg. Bend @ 20°F ASTM C-711
Impact Resistance
4 mm indent ASTM D-1474
Water Absorption Zero ASTM D570-77
Weatherometer (5000 hours) Pass ASTM G-23
